NTPsec

ntp.as397444.net

Report generated: Thu May 1 01:00:56 2025 UTC
Start Time: Wed Apr 30 01:00:49 2025 UTC
End Time: Thu May 1 01:00:49 2025 UTC
Report Period: 1.0 days

Local Clock Time/Frequency Offsets

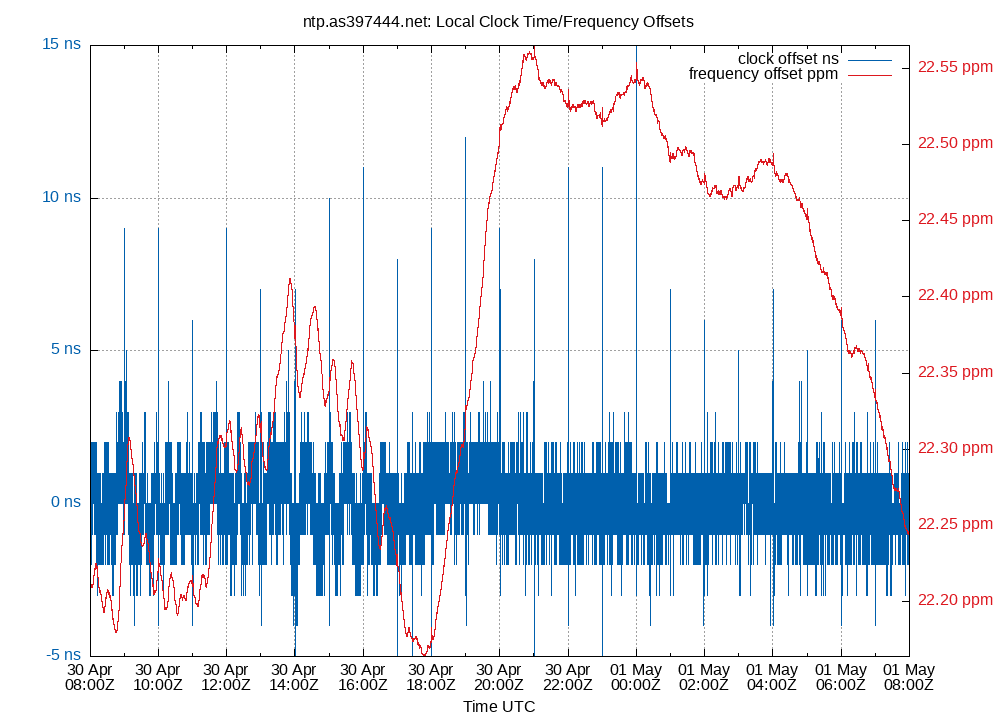

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -5.000 -2.000 -1.000 0.000 1.000 2.000 15.000 2.000 4.000 0.734 -0.002 ns -2.572 22.8
Local Clock Frequency Offset 22.161 22.165 22.176 22.329 22.541 22.557 22.565 0.365 0.392 0.132 22.353 ppm 4.782e+06 8.057e+08

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

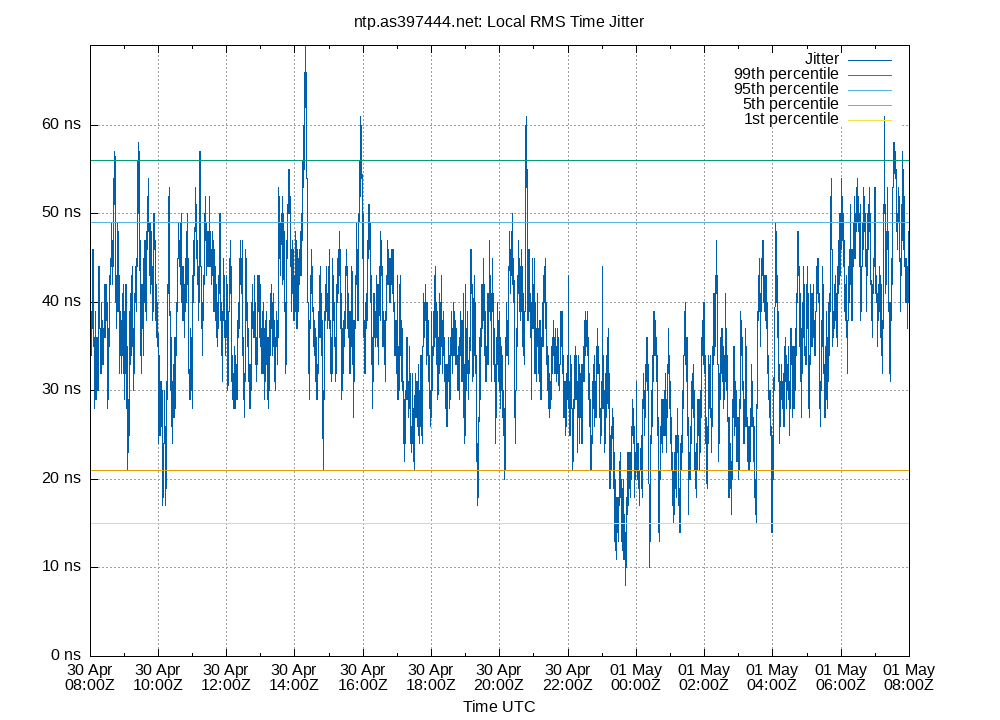

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 1.000 11.000 20.000 35.000 50.000 57.000 69.000 30.000 46.000 9.171 35.163 ns 31.06 114

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.

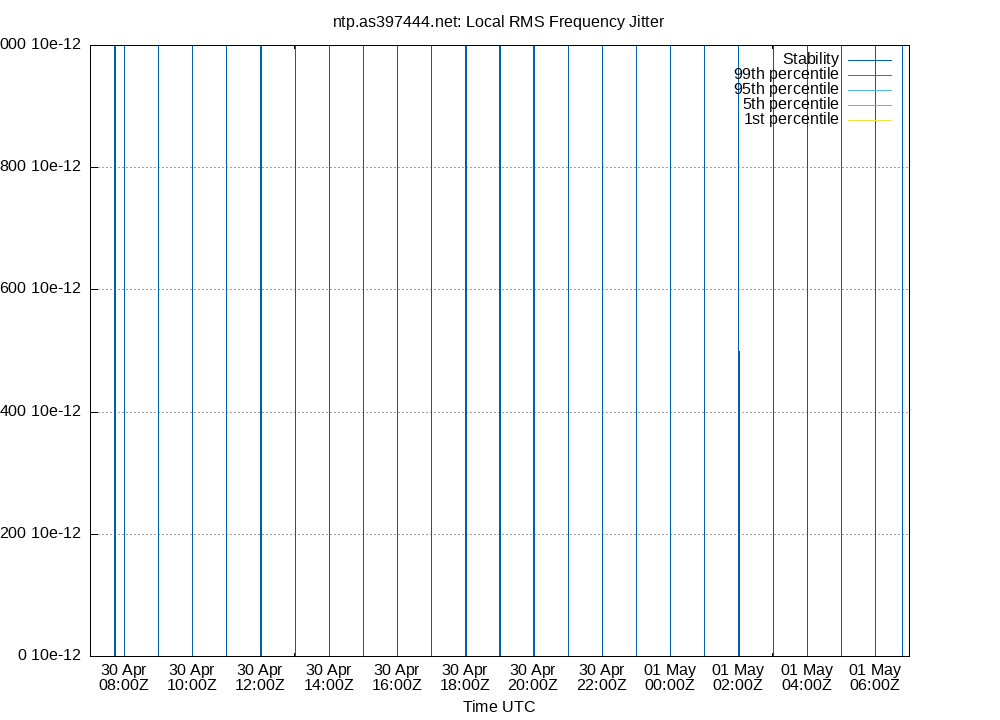

Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 0.000 0.000 0.000 0.000 0.000 0.000 1,000.000 0.000 0.000 70.930 5.057 10e-12 10.37 149.8

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.

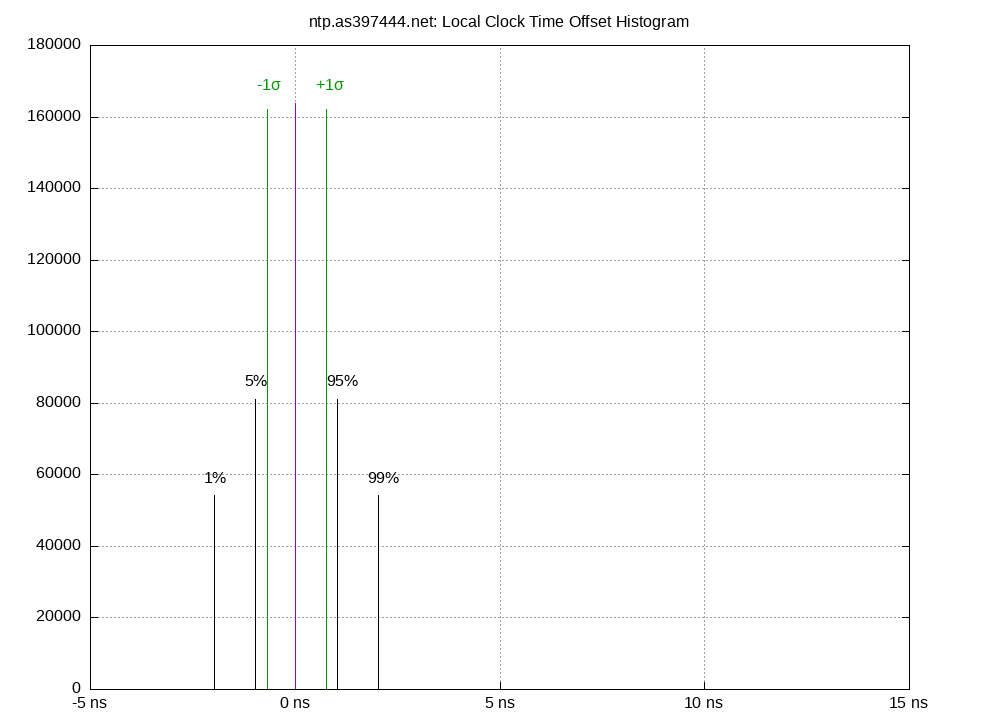

Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -5.000 -2.000 -1.000 0.000 1.000 2.000 15.000 2.000 4.000 0.734 -0.002 ns -2.572 22.8

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.

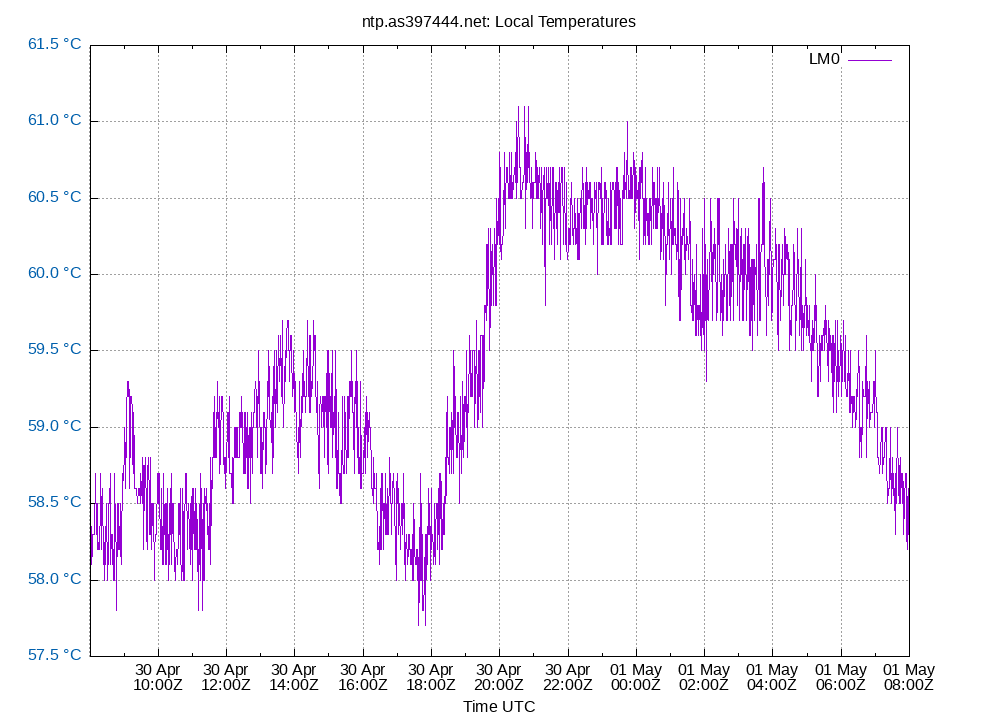

Local Temperatures

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.

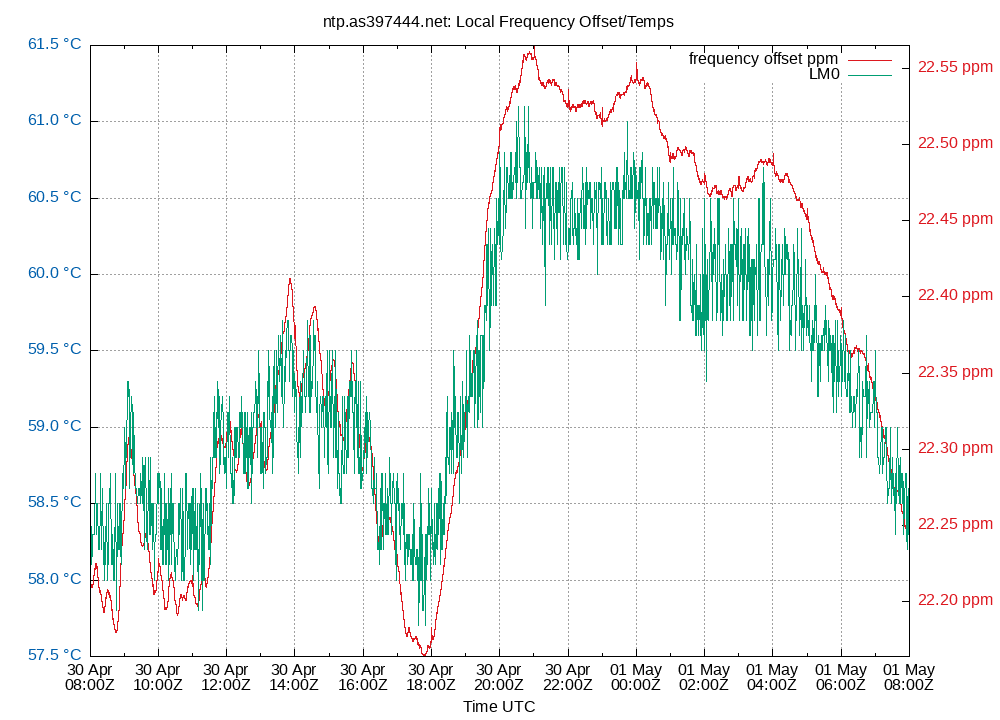

Local Frequency/Temp

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset 22.161 22.165 22.176 22.329 22.541 22.557 22.565 0.365 0.392 0.132 22.353 ppm 4.782e+06 8.057e+08
Temp LM0 57.700 57.800 58.100 59.100 60.600 60.800 61.100 2.500 3.000 0.885 59.265 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



Local GPS

local gps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
nSats 15.000 17.000 19.000 23.000 27.000 29.000 30.000 8.000 12.000 2.508 23.259 nSat 591.1 5094
TDOP 0.180 0.180 0.180 0.190 0.210 0.220 0.230 0.030 0.040 0.008 0.196 1.256e+04 2.93e+05

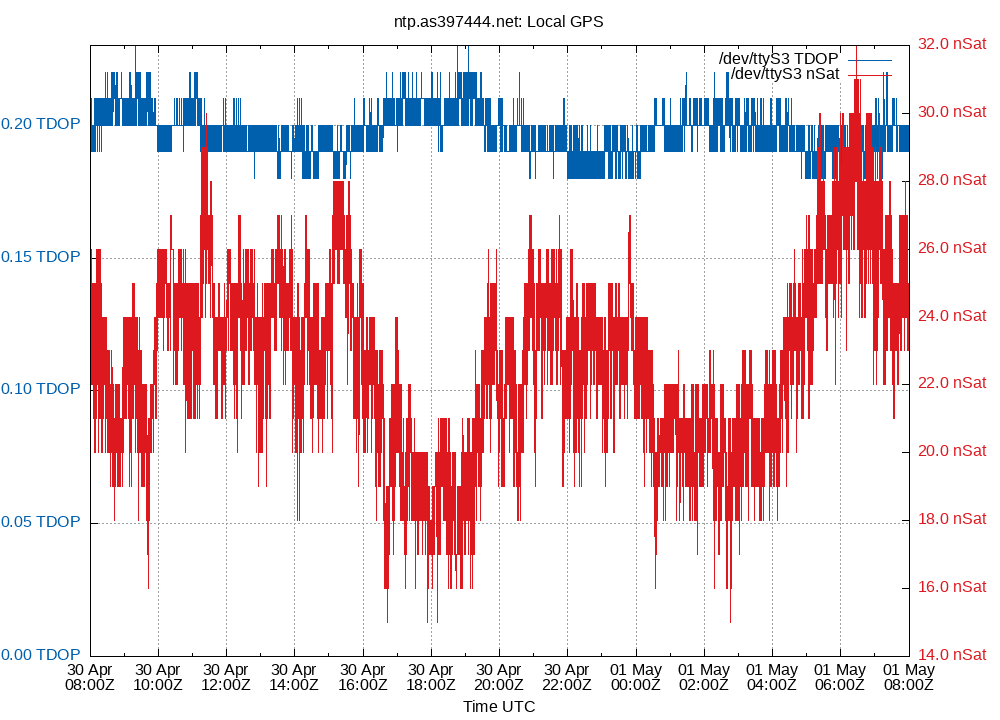

Local GPS. The Time Dilution of Precision (TDOP) is plotted in blue. The number of visible satellites (nSat) is plotted in red.

TDOP is field 3, and nSats is field 4, from the gpsd log file. The gpsd log file is created by the ntploggps program.

TDOP is a dimensionless error factor. Smaller numbers are better. TDOP ranges from 1 (ideal), 2 to 5 (good), to greater than 20 (poor). Some GNSS receivers report TDOP less than one which is theoretically impossible.



Server Offsets

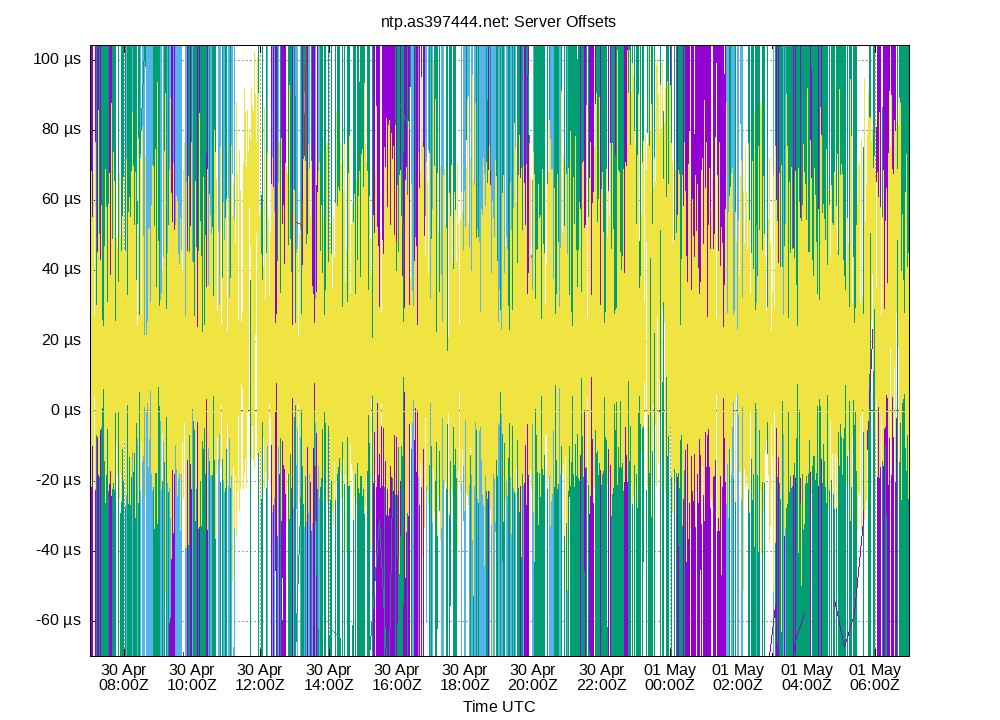

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Refclock Offset 127.127.20.1 NMEA(1)

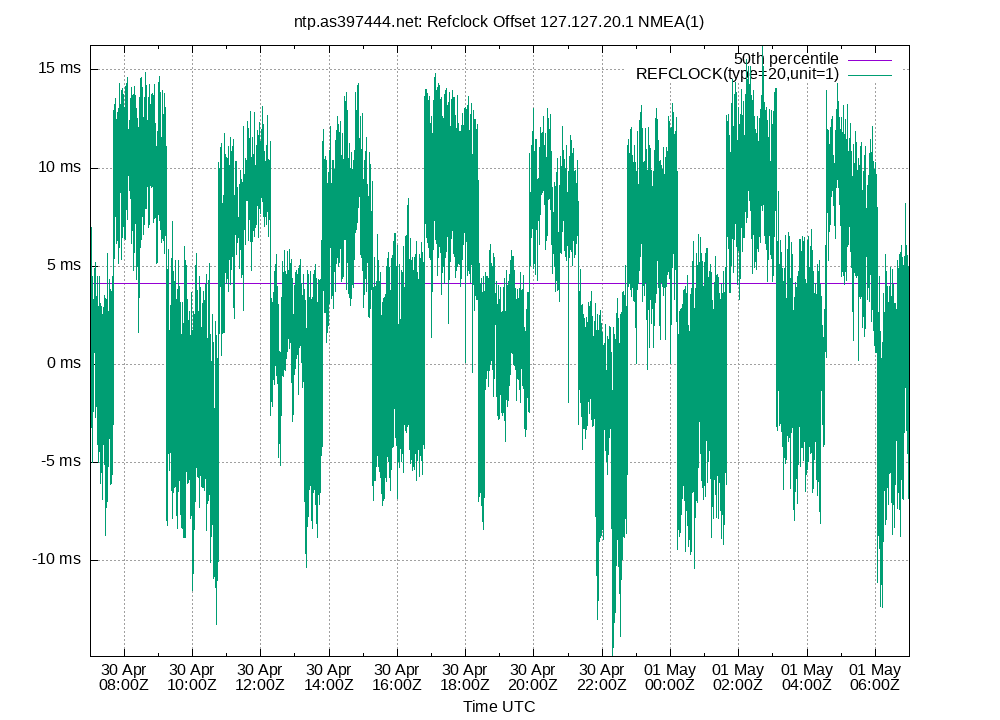

peer offset 127.127.20.1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock Offset 127.127.20.1 NMEA(1) -14.870 -7.488 -4.796 4.083 10.840 12.300 14.880 15.636 19.788 5.237 3.684 ms -1.153 2.763

The offset of a local refclock in seconds. This is useful to see how the measured offset is behaving.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local serial GPS 200 ms; local PPS 20µs.

Clock Offset is field 5 in the peerstats log file.

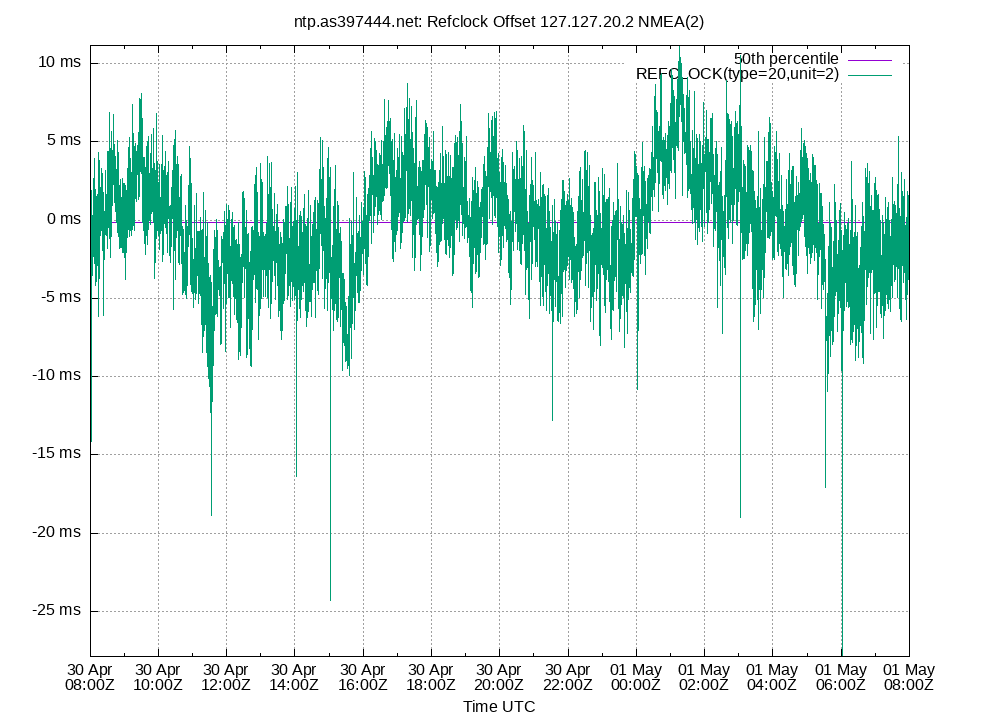

Refclock Offset 127.127.20.2 NMEA(2)

peer offset 127.127.20.2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock Offset 127.127.20.2 NMEA(2) -24.310 -7.519 -5.216 -0.486 3.893 5.561 9.386 9.109 13.080 2.811 -0.557 ms -5.534 15.25

The offset of a local refclock in seconds. This is useful to see how the measured offset is behaving.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local serial GPS 200 ms; local PPS 20µs.

Clock Offset is field 5 in the peerstats log file.

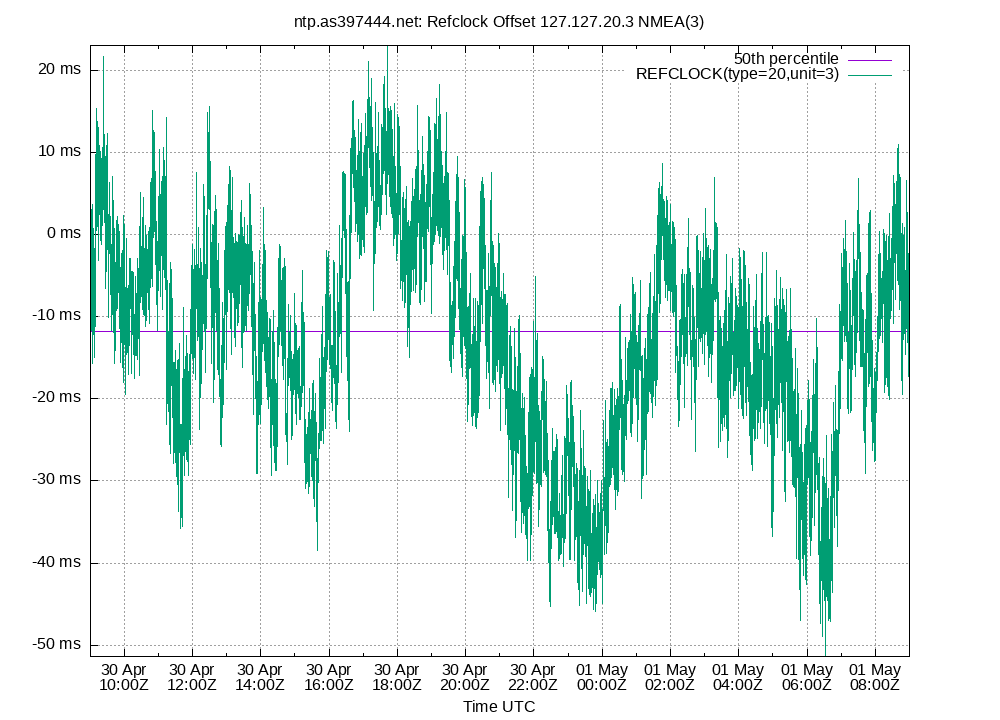

Refclock Offset 127.127.20.3 NMEA(3)

peer offset 127.127.20.3 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock Offset 127.127.20.3 NMEA(3) -49.470 -39.670 -33.520 -14.570 6.950 12.490 23.000 40.470 52.160 12.200 -13.733 ms -15.89 49.22

The offset of a local refclock in seconds. This is useful to see how the measured offset is behaving.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local serial GPS 200 ms; local PPS 20µs.

Clock Offset is field 5 in the peerstats log file.

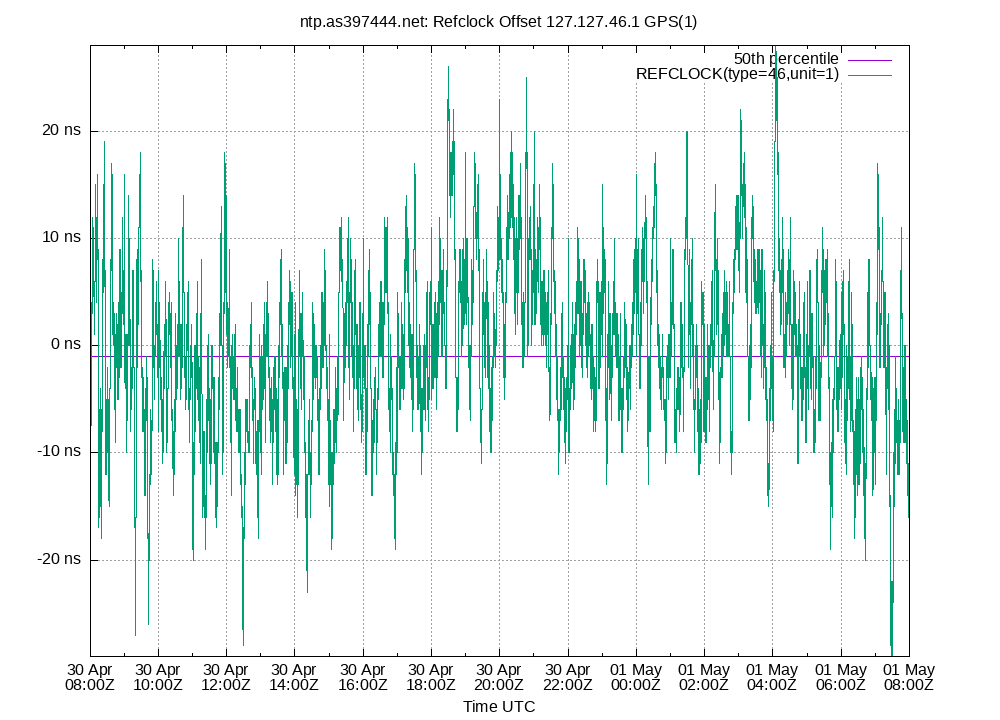

Refclock Offset 127.127.46.1 GPS(1)

peer offset 127.127.46.1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock Offset 127.127.46.1 GPS(1) -28.000 -20.000 -12.000 -1.000 13.000 18.000 34.000 25.000 38.000 7.787 -0.469 ns -4.252 10.76

The offset of a local refclock in seconds. This is useful to see how the measured offset is behaving.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local serial GPS 200 ms; local PPS 20µs.

Clock Offset is field 5 in the peerstats log file.

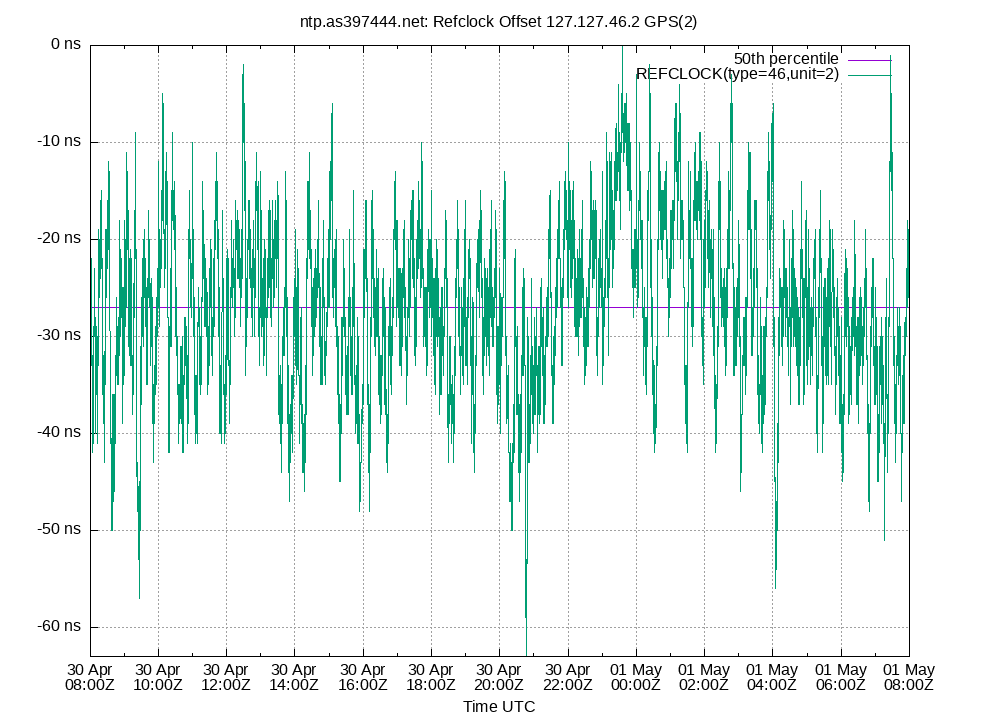

Refclock Offset 127.127.46.2 GPS(2)

peer offset 127.127.46.2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock Offset 127.127.46.2 GPS(2) -63.000 -48.000 -40.000 -27.000 -12.000 -5.000 6.000 28.000 43.000 8.657 -26.508 ns -79.16 373.9

The offset of a local refclock in seconds. This is useful to see how the measured offset is behaving.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local serial GPS 200 ms; local PPS 20µs.

Clock Offset is field 5 in the peerstats log file.



Refclock Offset 127.127.46.3 GPS(3)

peer offset 127.127.46.3 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock Offset 127.127.46.3 GPS(3) -2.000 7.000 14.000 27.000 39.000 44.000 56.000 25.000 37.000 7.617 26.877 ns 23.6 81.09

The offset of a local refclock in seconds. This is useful to see how the measured offset is behaving.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local serial GPS 200 ms; local PPS 20µs.

Clock Offset is field 5 in the peerstats log file.

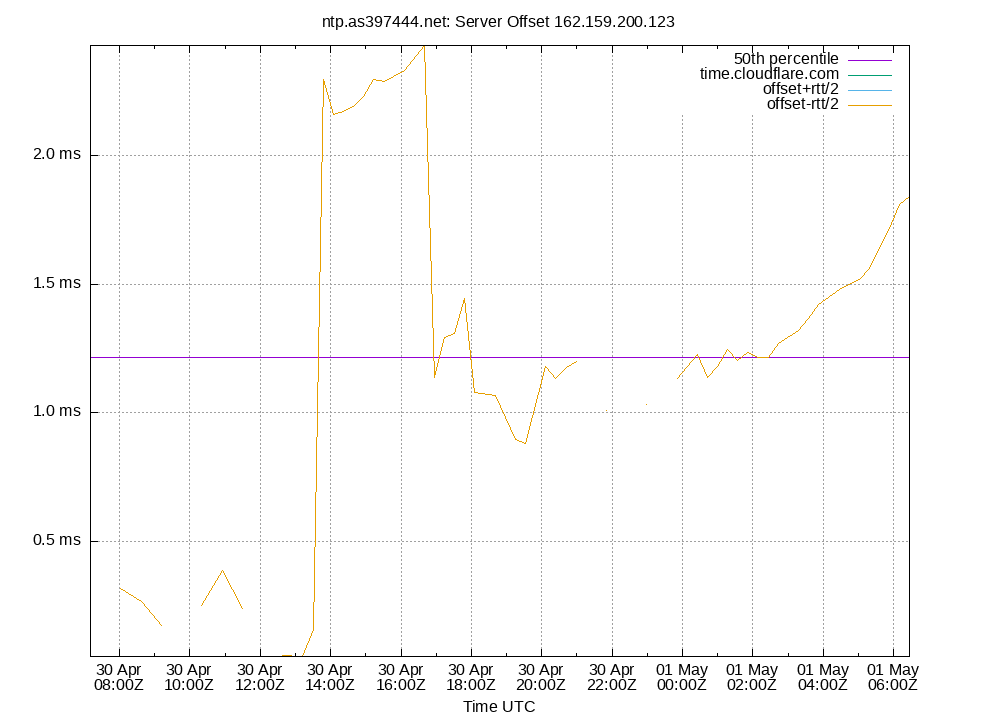

Server Offset 162.159.200.123

peer offset 162.159.200.123 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 162.159.200.123 0.053 0.053 0.061 1.067 2.297 2.428 2.428 2.236 2.375 0.722 0.993 ms 1.675 3.881

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

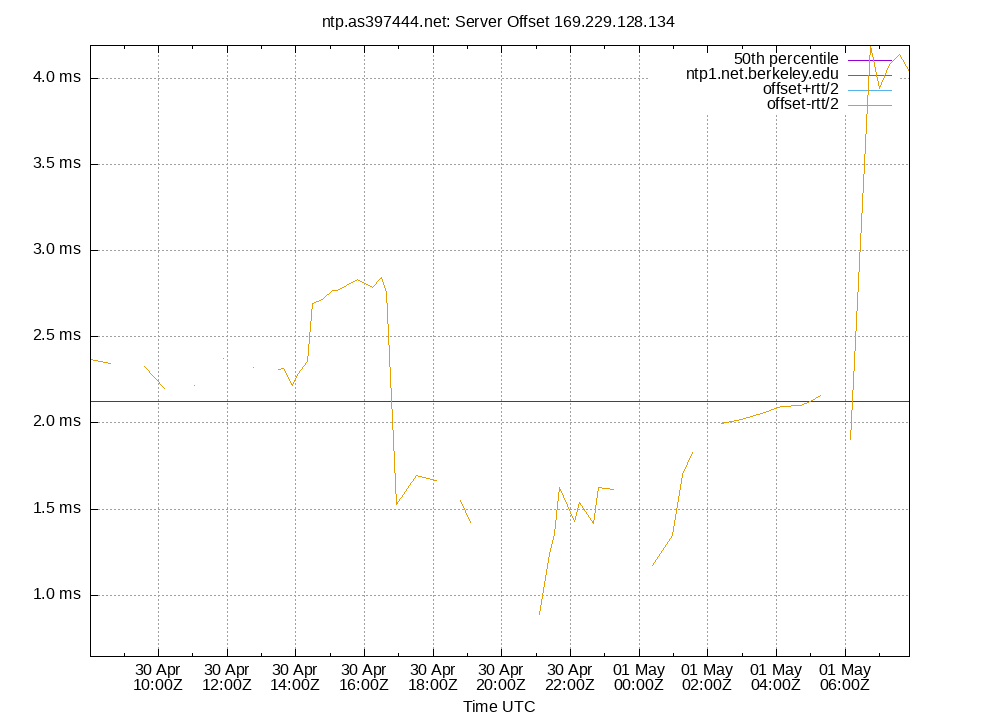

Server Offset 169.229.128.134

peer offset 169.229.128.134 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 169.229.128.134 0.645 0.645 1.173 2.202 2.786 2.846 2.846 1.613 2.201 0.523 2.051 ms 33.1 120.1

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

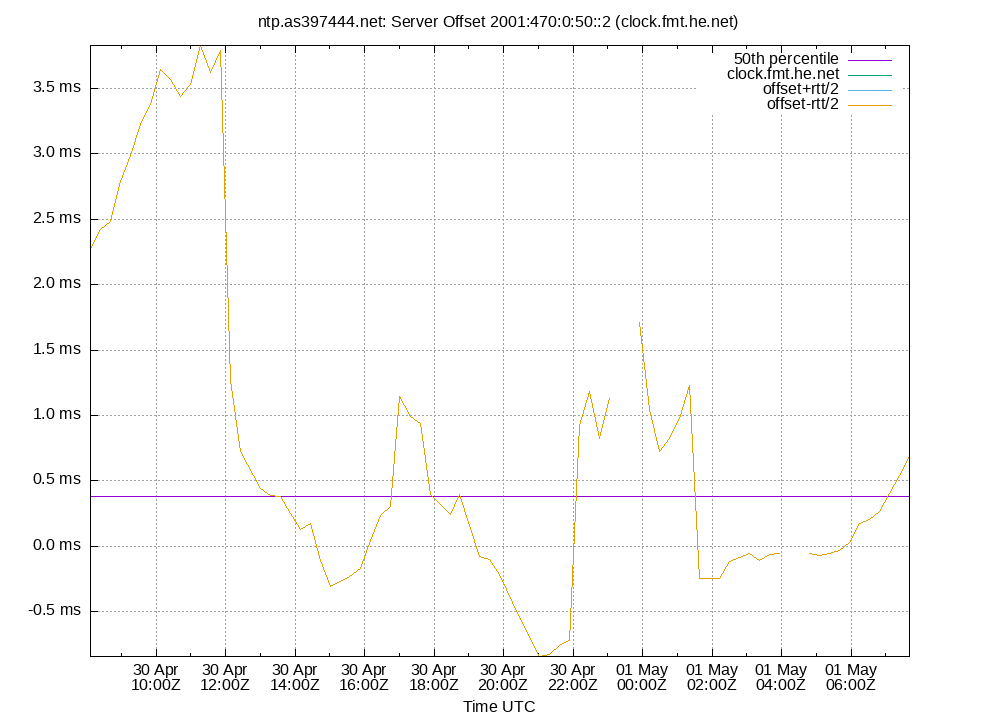

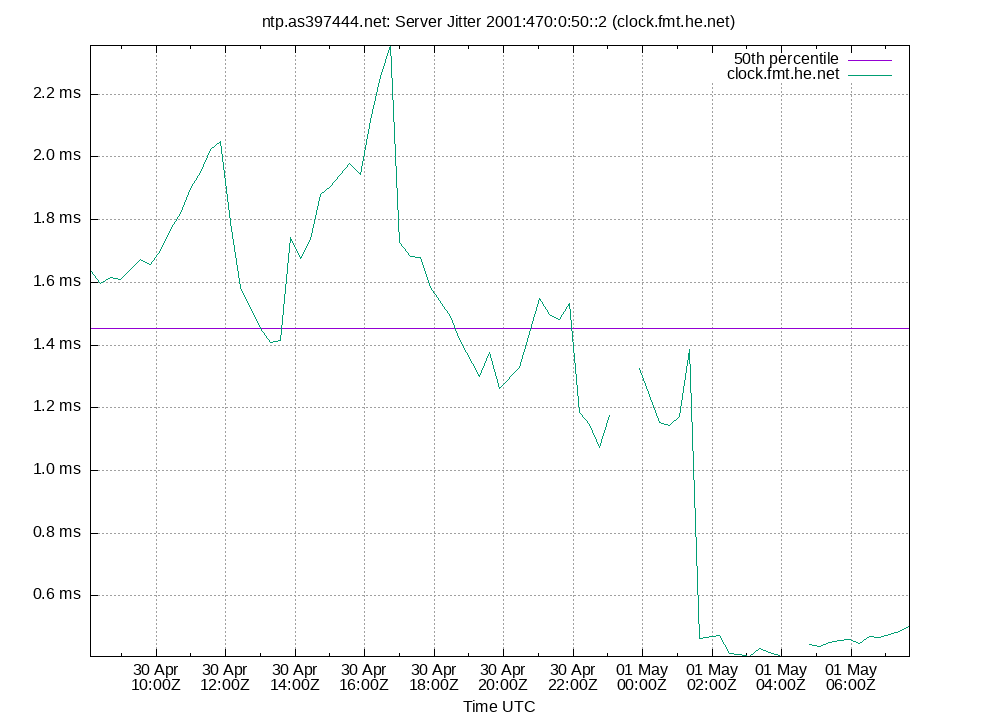

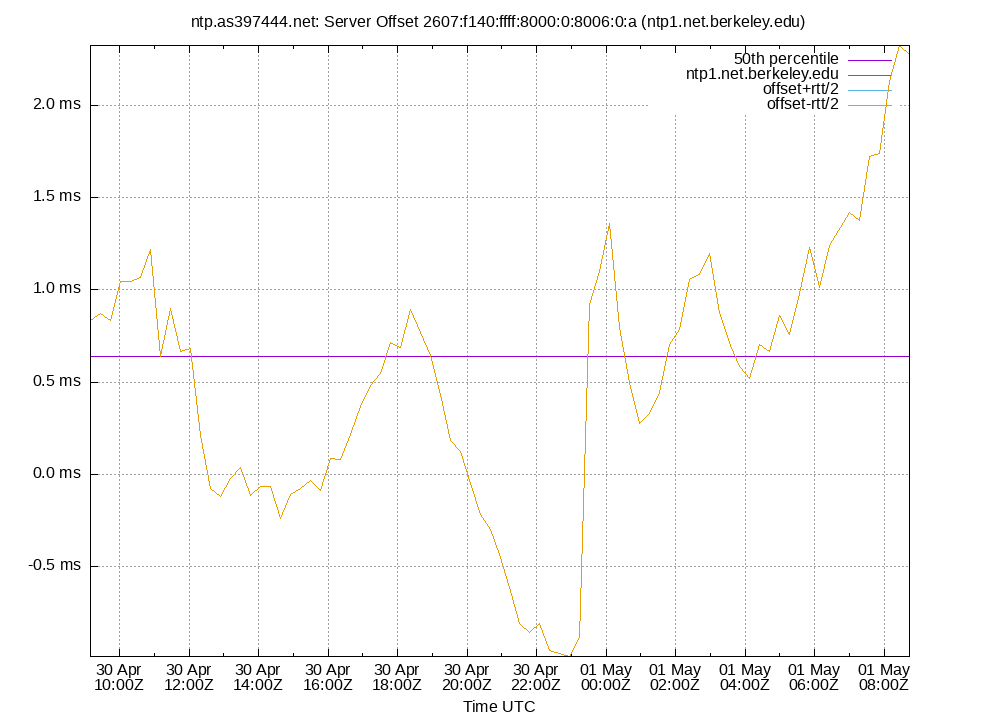

Server Offset 2001:470:0:50::2 (clock.fmt.he.net)

peer offset 2001:470:0:50::2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2001:470:0:50::2 (clock.fmt.he.net) -0.841 -0.841 -0.746 0.399 3.623 3.827 3.827 4.370 4.668 1.342 0.859 ms -0.2864 2.204

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

peer offset 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) -1.198 -1.198 -0.969 0.431 2.273 2.891 2.891 3.242 4.089 0.968 0.528 ms -1.057 3.152

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

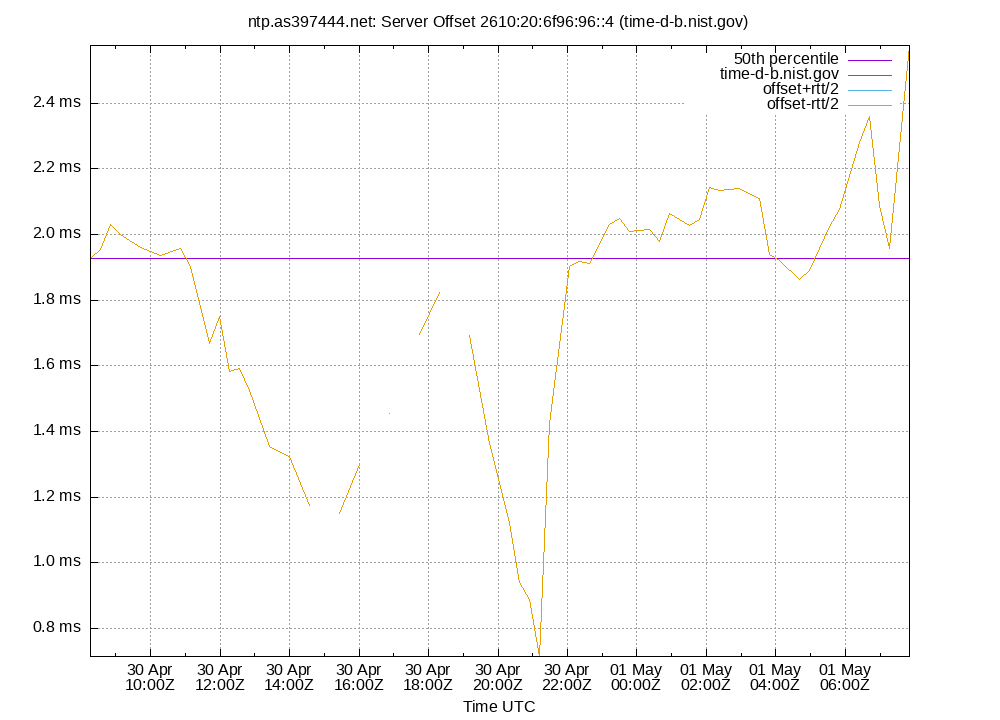

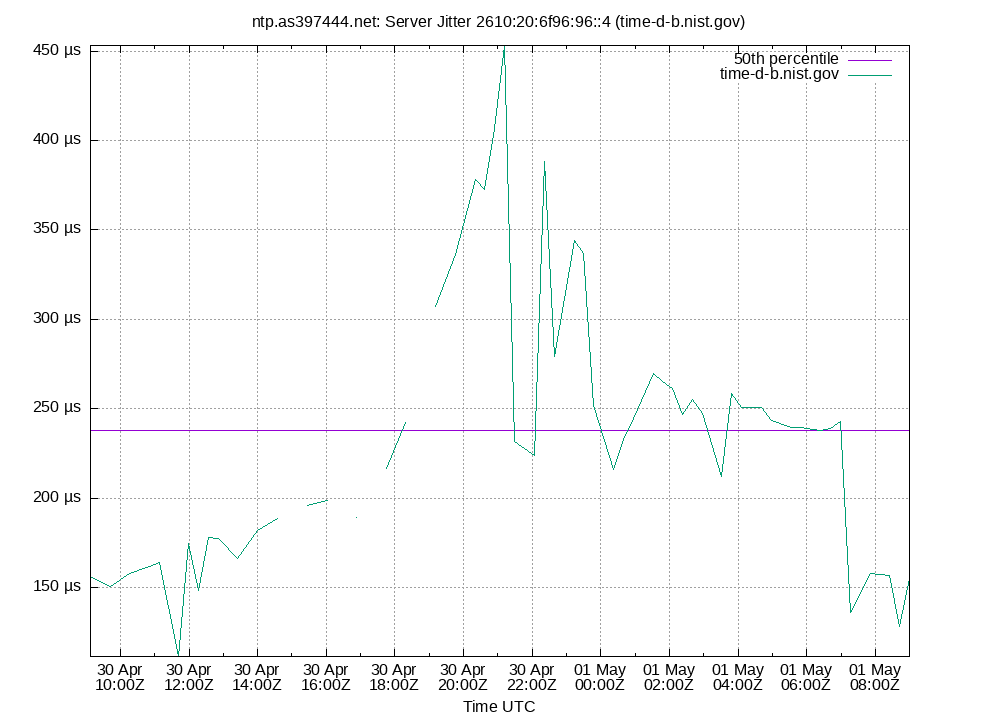

Server Offset 2610:20:6f96:96::4 (time-d-b.nist.gov)

peer offset 2610:20:6f96:96::4 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2610:20:6f96:96::4 (time-d-b.nist.gov) 0.714 0.714 0.889 1.500 2.032 2.063 2.063 1.143 1.349 0.398 1.504 ms 29.7 106.4

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2610:20:6f97:97::6 (time-e-wwv.nist.gov)

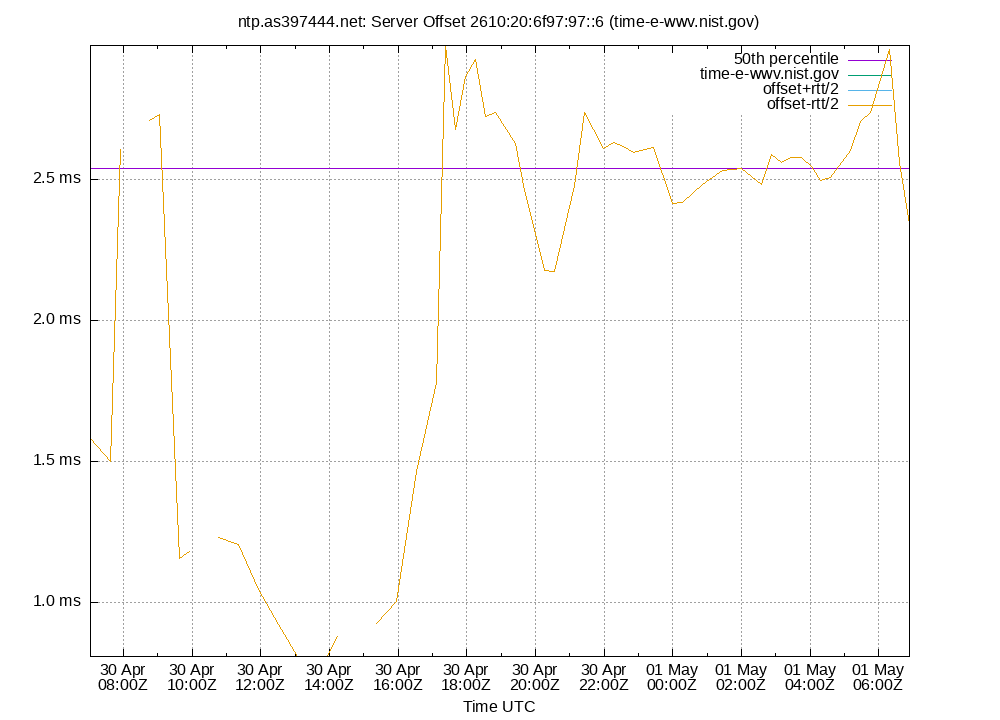

peer offset 2610:20:6f97:97::6 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2610:20:6f97:97::6 (time-e-wwv.nist.gov) 0.809 0.809 0.879 2.178 2.865 2.975 2.975 1.986 2.166 0.642 1.995 ms 15.34 45.35

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

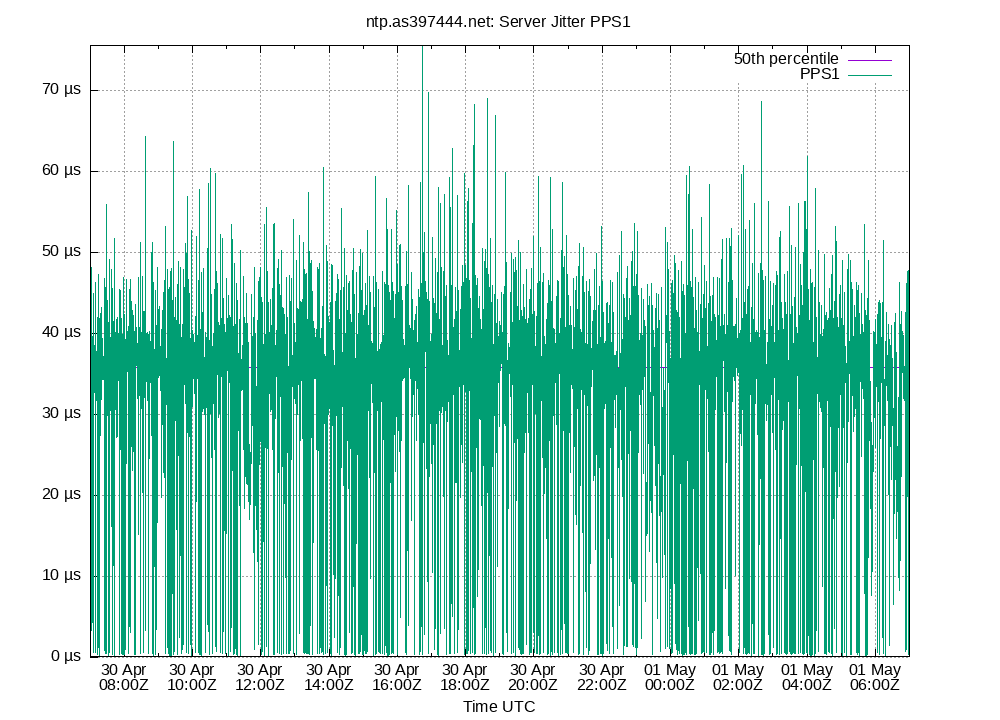

Server Offset PPS1

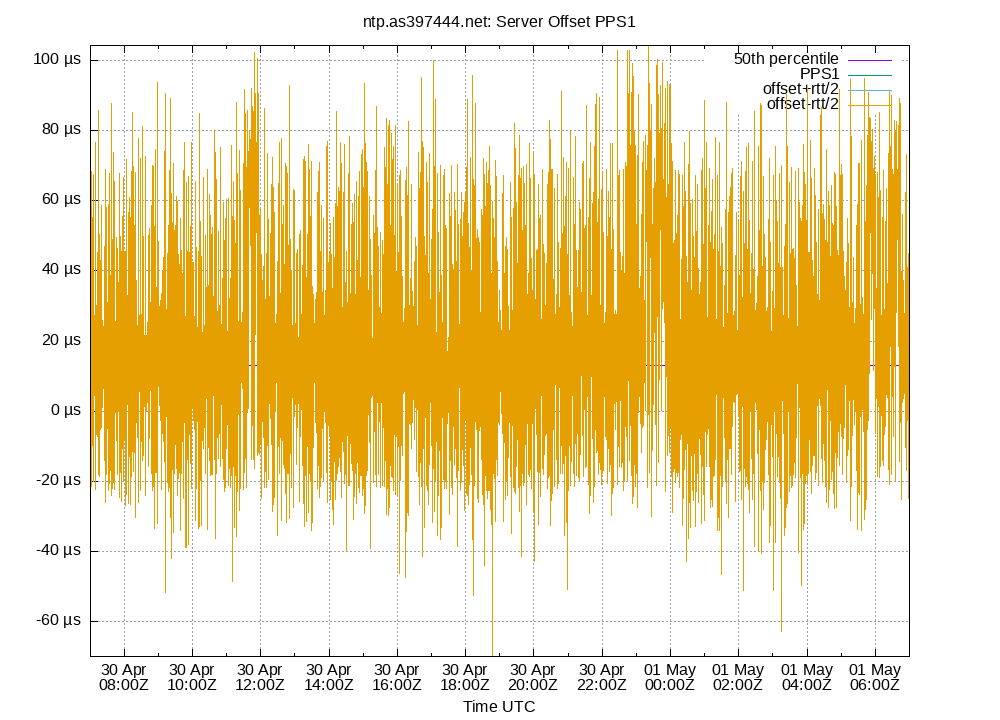

peer offset PPS1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset PPS1 -70.110 -19.610 -9.520 12.860 51.320 74.360 107.300 60.840 93.970 18.026 14.916 µs 0.5496 4.664

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

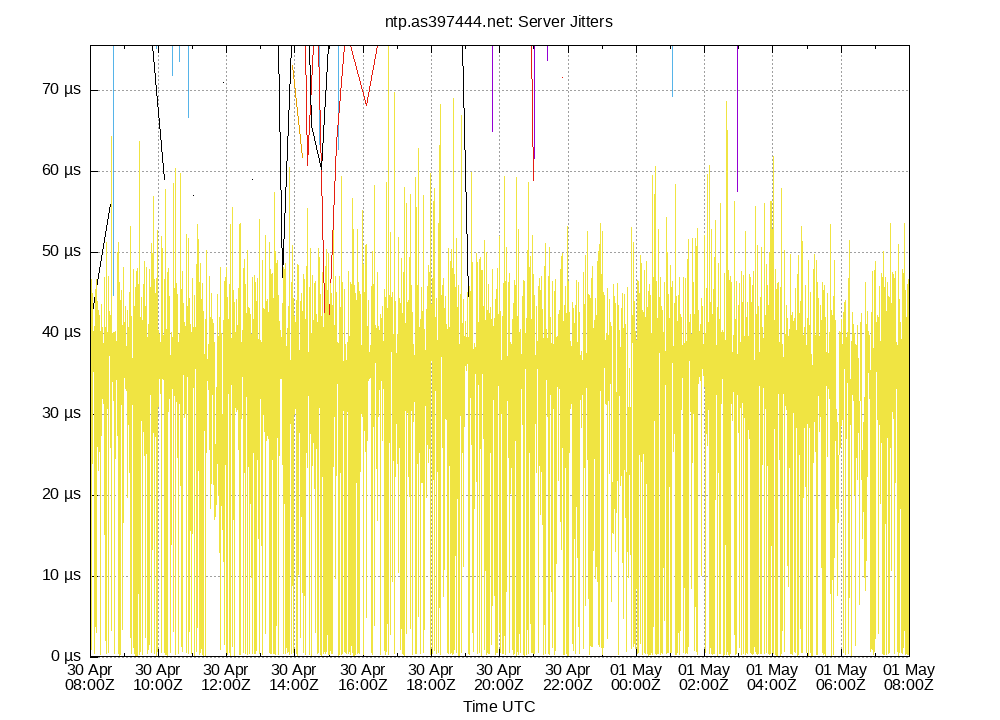

Server Jitters

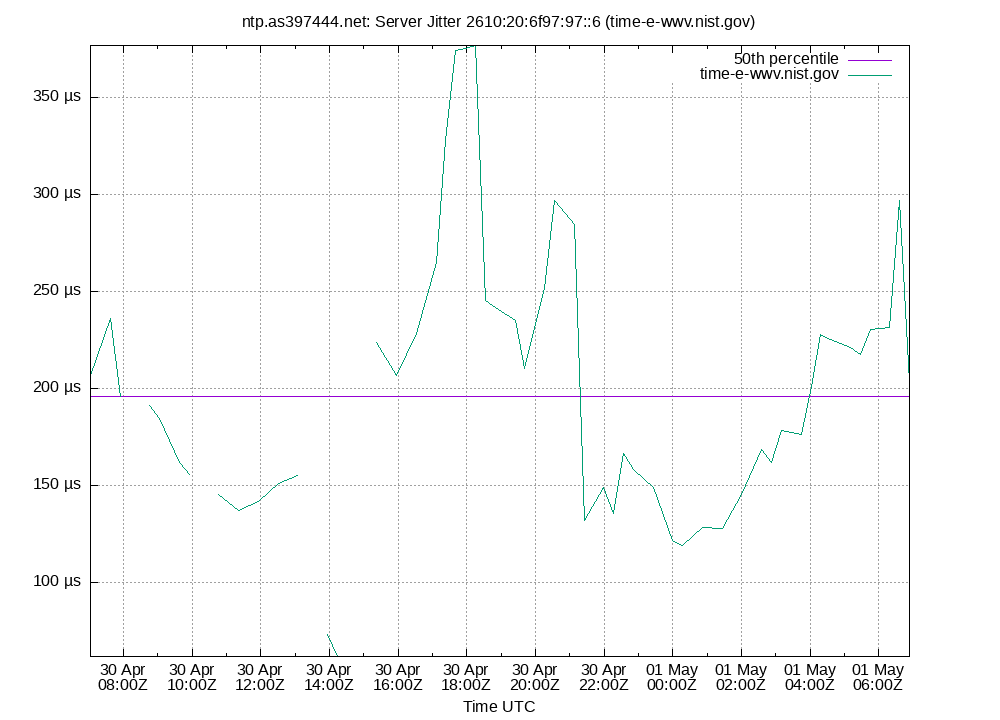

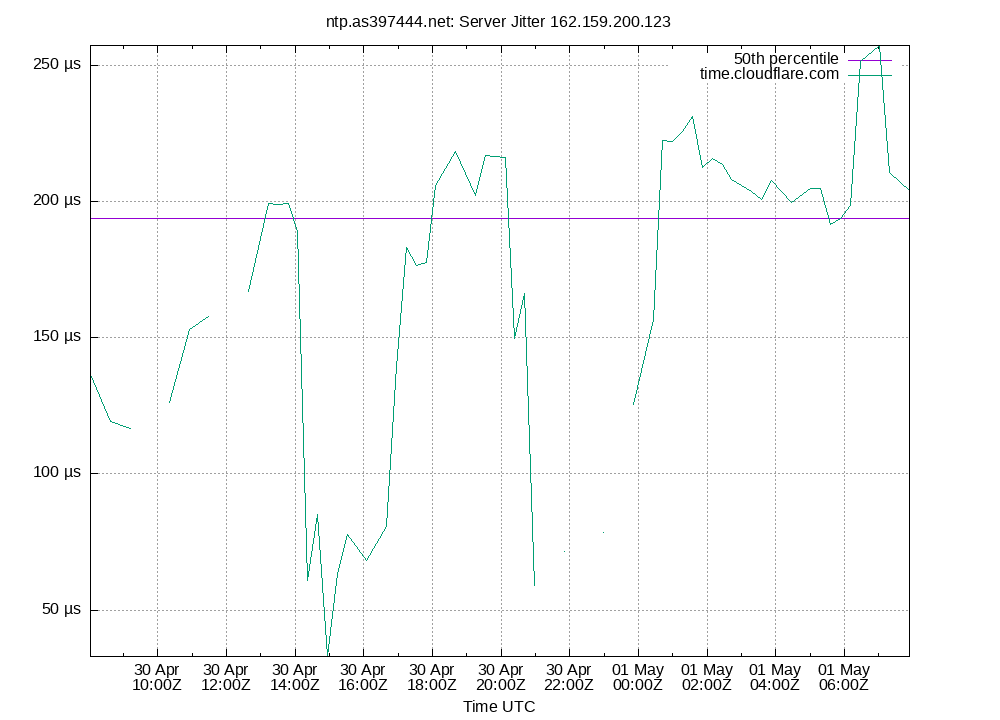

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

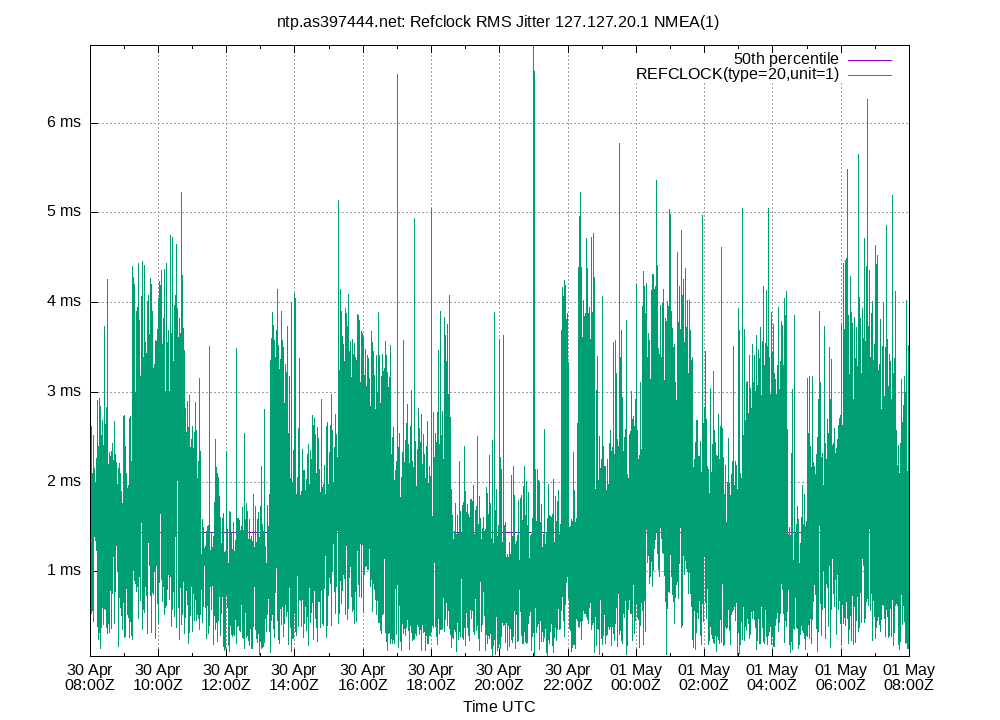

Refclock RMS Jitter 127.127.20.1 NMEA(1)

peer jitter 127.127.20.1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock RMS Jitter 127.127.20.1 NMEA(1) 0.053 0.312 0.534 1.466 2.955 3.646 6.888 2.421 3.334 0.755 1.576 ms 5.329 15.61

The RMS Jitter of a local refclock. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

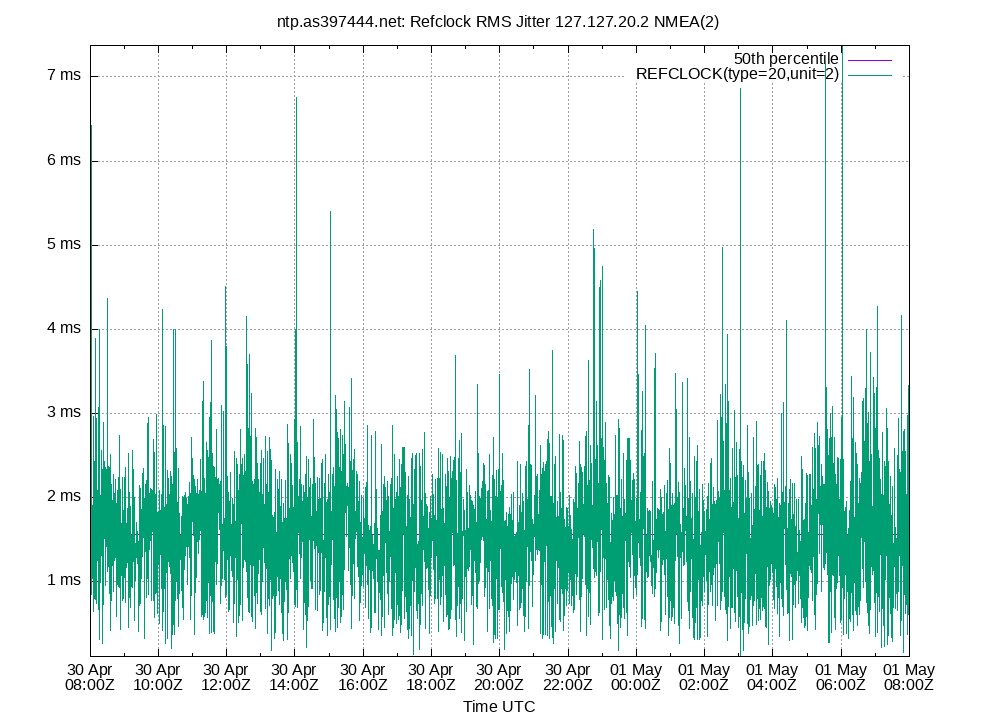

Refclock RMS Jitter 127.127.20.2 NMEA(2)

peer jitter 127.127.20.2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock RMS Jitter 127.127.20.2 NMEA(2) 0.137 0.678 0.985 1.581 2.219 2.731 7.431 1.234 2.053 0.404 1.596 ms 35.53 151.8

The RMS Jitter of a local refclock. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Refclock RMS Jitter 127.127.20.3 NMEA(3)

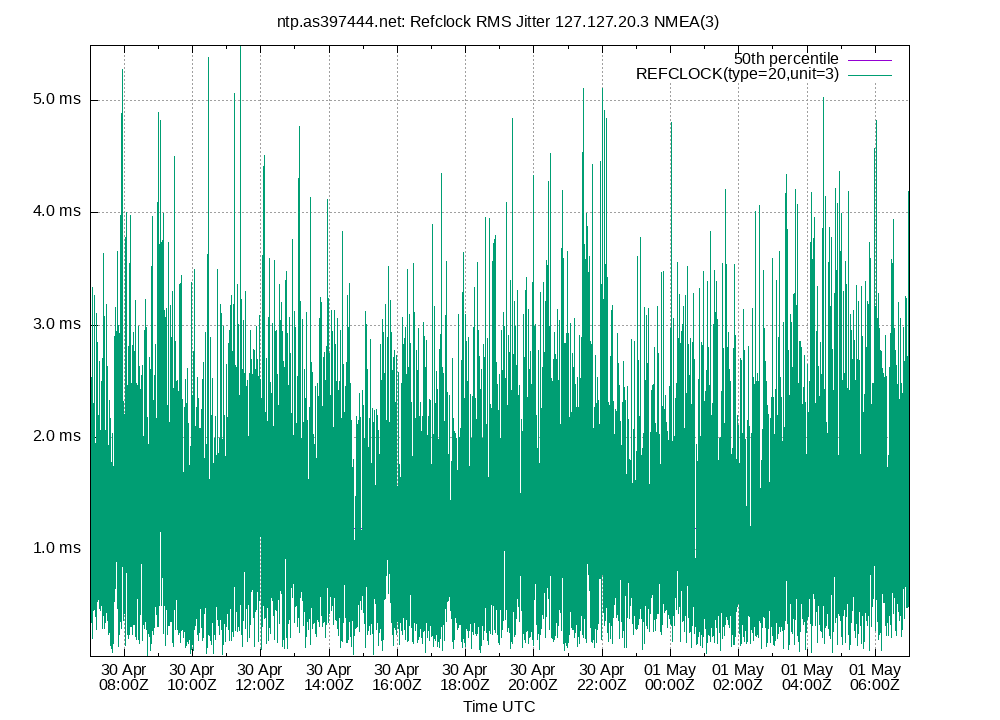

peer jitter 127.127.20.3 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock RMS Jitter 127.127.20.3 NMEA(3) 0.040 0.247 0.410 1.197 2.368 3.059 5.849 1.958 2.812 0.611 1.273 ms 5.39 16.63

The RMS Jitter of a local refclock. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

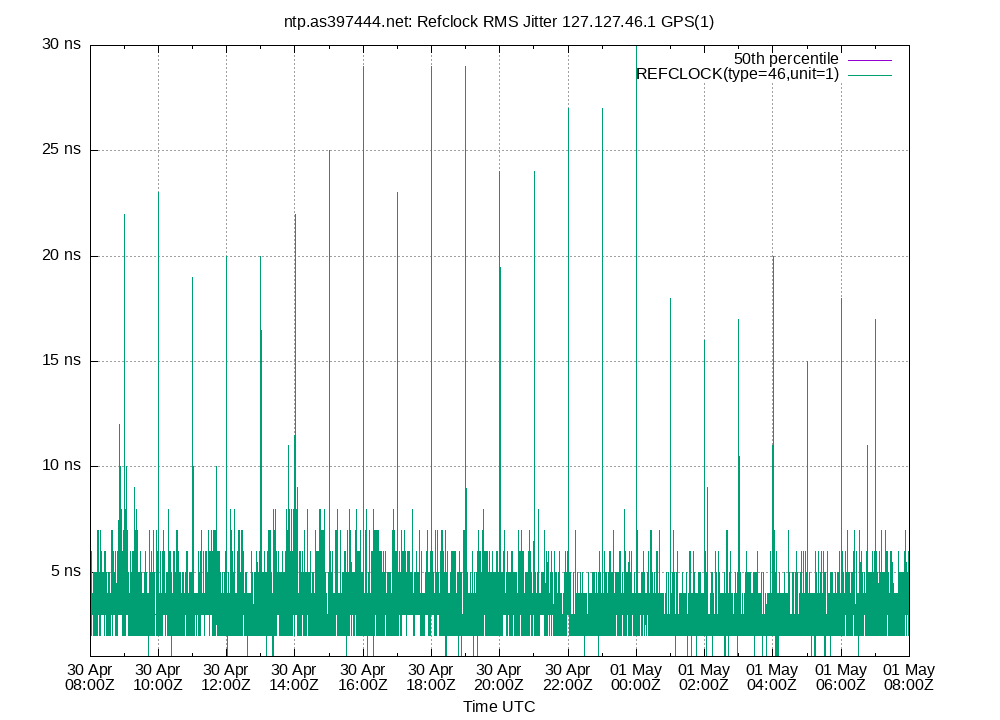

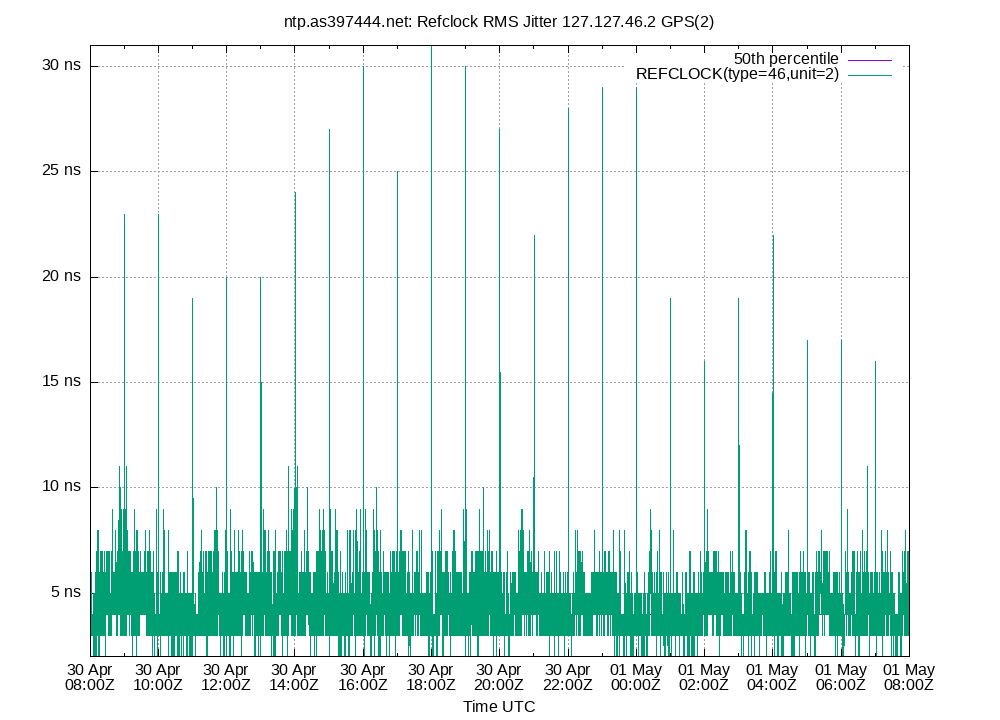

Refclock RMS Jitter 127.127.46.1 GPS(1)

peer jitter 127.127.46.1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock RMS Jitter 127.127.46.1 GPS(1) 1.000 2.000 2.000 3.000 6.000 8.000 30.000 4.000 6.000 1.605 3.452 ns 10.7 100.5

The RMS Jitter of a local refclock. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Refclock RMS Jitter 127.127.46.2 GPS(2)

peer jitter 127.127.46.2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock RMS Jitter 127.127.46.2 GPS(2) 2.000 2.000 3.000 4.000 6.000 9.000 31.000 3.000 7.000 1.591 4.380 ns 16.06 128.3

The RMS Jitter of a local refclock. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Refclock RMS Jitter 127.127.46.3 GPS(3)

peer jitter 127.127.46.3 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Refclock RMS Jitter 127.127.46.3 GPS(3) 1.000 1.000 1.000 2.000 5.000 8.000 30.000 4.000 7.000 1.785 2.680 ns 6.835 66.58

The RMS Jitter of a local refclock. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 162.159.200.123

peer jitter 162.159.200.123 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 162.159.200.123 32.920 32.920 60.790 182.000 321.100 747.700 747.700 260.310 714.780 116.337 183.734 µs 4.857 23.02

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

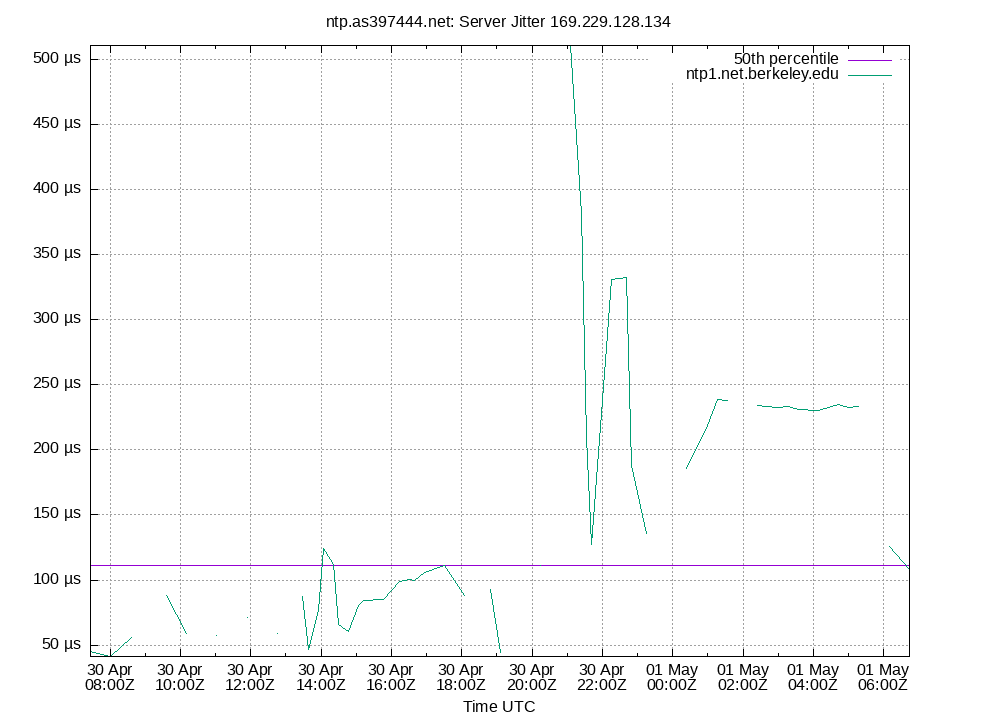

Server Jitter 169.229.128.134

peer jitter 169.229.128.134 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 169.229.128.134 36.100 36.100 41.310 100.100 343.200 510.700 510.700 301.890 474.600 105.680 143.971 µs 2.497 7.116

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2001:470:0:50::2 (clock.fmt.he.net)

peer jitter 2001:470:0:50::2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2001:470:0:50::2 (clock.fmt.he.net) 1.072 1.072 1.153 1.608 2.048 2.355 2.355 0.895 1.283 0.249 1.598 ms 175.3 1047

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

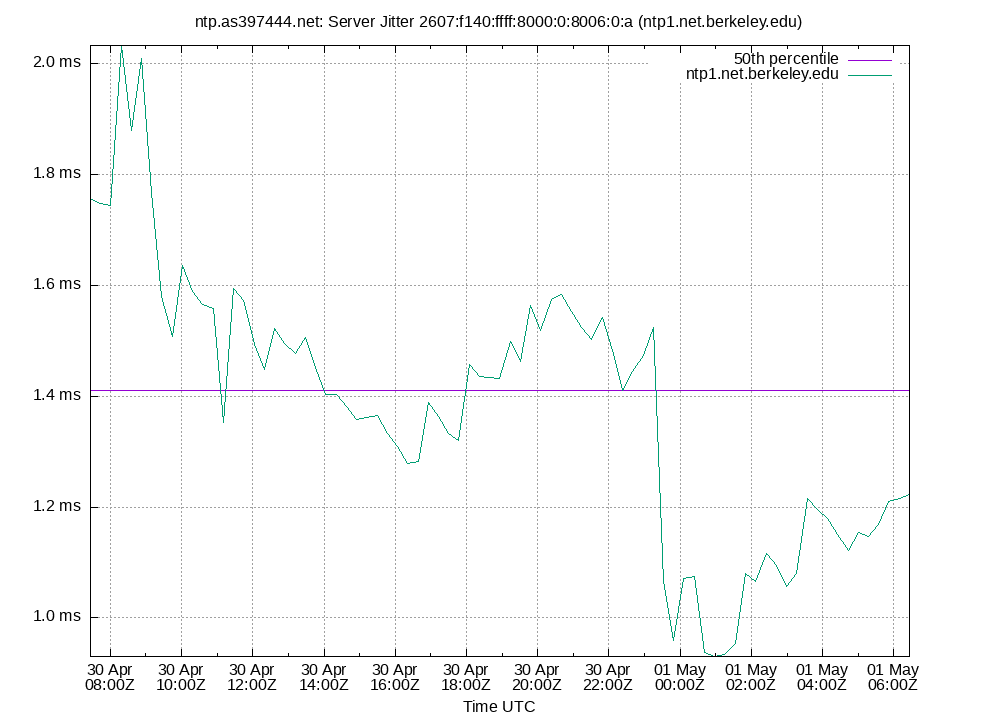

Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

peer jitter 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 0.930 0.930 1.065 1.478 1.765 2.033 2.033 0.700 1.103 0.215 1.452 ms 206.8 1288

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2610:20:6f96:96::4 (time-d-b.nist.gov)

peer jitter 2610:20:6f96:96::4 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2610:20:6f96:96::4 (time-d-b.nist.gov) 111.100 111.100 131.200 216.100 388.200 453.100 453.100 257.000 342.000 75.478 226.791 µs 15.17 52.81

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2610:20:6f97:97::6 (time-e-wwv.nist.gov)

peer jitter 2610:20:6f97:97::6 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2610:20:6f97:97::6 (time-e-wwv.nist.gov) 61.790 61.790 119.100 199.300 374.000 376.600 376.600 254.900 314.810 67.917 206.806 µs 15.23 50.36

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter PPS1

peer jitter PPS1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter PPS1 0.066 0.521 19.490 35.750 42.470 47.300 75.580 22.980 46.779 7.907 34.194 µs 44.5 169

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset 22.161 22.165 22.176 22.329 22.541 22.557 22.565 0.365 0.392 0.132 22.353 ppm 4.782e+06 8.057e+08
Local Clock Time Offset -5.000 -2.000 -1.000 0.000 1.000 2.000 15.000 2.000 4.000 0.734 -0.002 ns -2.572 22.8
Local RMS Frequency Jitter 0.000 0.000 0.000 0.000 0.000 0.000 1,000.000 0.000 0.000 70.930 5.057 10e-12 10.37 149.8
Local RMS Time Jitter 1.000 11.000 20.000 35.000 50.000 57.000 69.000 30.000 46.000 9.171 35.163 ns 31.06 114
Refclock Offset 127.127.20.1 NMEA(1) -14.870 -7.488 -4.796 4.083 10.840 12.300 14.880 15.636 19.788 5.237 3.684 ms -1.153 2.763
Refclock Offset 127.127.20.2 NMEA(2) -24.310 -7.519 -5.216 -0.486 3.893 5.561 9.386 9.109 13.080 2.811 -0.557 ms -5.534 15.25
Refclock Offset 127.127.20.3 NMEA(3) -49.470 -39.670 -33.520 -14.570 6.950 12.490 23.000 40.470 52.160 12.200 -13.733 ms -15.89 49.22
Refclock Offset 127.127.46.1 GPS(1) -28.000 -20.000 -12.000 -1.000 13.000 18.000 34.000 25.000 38.000 7.787 -0.469 ns -4.252 10.76
Refclock Offset 127.127.46.2 GPS(2) -63.000 -48.000 -40.000 -27.000 -12.000 -5.000 6.000 28.000 43.000 8.657 -26.508 ns -79.16 373.9
Refclock Offset 127.127.46.3 GPS(3) -2.000 7.000 14.000 27.000 39.000 44.000 56.000 25.000 37.000 7.617 26.877 ns 23.6 81.09
Refclock RMS Jitter 127.127.20.1 NMEA(1) 0.053 0.312 0.534 1.466 2.955 3.646 6.888 2.421 3.334 0.755 1.576 ms 5.329 15.61
Refclock RMS Jitter 127.127.20.2 NMEA(2) 0.137 0.678 0.985 1.581 2.219 2.731 7.431 1.234 2.053 0.404 1.596 ms 35.53 151.8
Refclock RMS Jitter 127.127.20.3 NMEA(3) 0.040 0.247 0.410 1.197 2.368 3.059 5.849 1.958 2.812 0.611 1.273 ms 5.39 16.63
Refclock RMS Jitter 127.127.46.1 GPS(1) 1.000 2.000 2.000 3.000 6.000 8.000 30.000 4.000 6.000 1.605 3.452 ns 10.7 100.5
Refclock RMS Jitter 127.127.46.2 GPS(2) 2.000 2.000 3.000 4.000 6.000 9.000 31.000 3.000 7.000 1.591 4.380 ns 16.06 128.3
Refclock RMS Jitter 127.127.46.3 GPS(3) 1.000 1.000 1.000 2.000 5.000 8.000 30.000 4.000 7.000 1.785 2.680 ns 6.835 66.58
Server Jitter 162.159.200.123 32.920 32.920 60.790 182.000 321.100 747.700 747.700 260.310 714.780 116.337 183.734 µs 4.857 23.02
Server Jitter 169.229.128.134 36.100 36.100 41.310 100.100 343.200 510.700 510.700 301.890 474.600 105.680 143.971 µs 2.497 7.116
Server Jitter 2001:470:0:50::2 (clock.fmt.he.net) 1.072 1.072 1.153 1.608 2.048 2.355 2.355 0.895 1.283 0.249 1.598 ms 175.3 1047
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 0.930 0.930 1.065 1.478 1.765 2.033 2.033 0.700 1.103 0.215 1.452 ms 206.8 1288
Server Jitter 2610:20:6f96:96::4 (time-d-b.nist.gov) 111.100 111.100 131.200 216.100 388.200 453.100 453.100 257.000 342.000 75.478 226.791 µs 15.17 52.81
Server Jitter 2610:20:6f97:97::6 (time-e-wwv.nist.gov) 61.790 61.790 119.100 199.300 374.000 376.600 376.600 254.900 314.810 67.917 206.806 µs 15.23 50.36
Server Jitter PPS1 0.066 0.521 19.490 35.750 42.470 47.300 75.580 22.980 46.779 7.907 34.194 µs 44.5 169
Server Offset 162.159.200.123 0.053 0.053 0.061 1.067 2.297 2.428 2.428 2.236 2.375 0.722 0.993 ms 1.675 3.881
Server Offset 169.229.128.134 0.645 0.645 1.173 2.202 2.786 2.846 2.846 1.613 2.201 0.523 2.051 ms 33.1 120.1
Server Offset 2001:470:0:50::2 (clock.fmt.he.net) -0.841 -0.841 -0.746 0.399 3.623 3.827 3.827 4.370 4.668 1.342 0.859 ms -0.2864 2.204
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) -1.198 -1.198 -0.969 0.431 2.273 2.891 2.891 3.242 4.089 0.968 0.528 ms -1.057 3.152
Server Offset 2610:20:6f96:96::4 (time-d-b.nist.gov) 0.714 0.714 0.889 1.500 2.032 2.063 2.063 1.143 1.349 0.398 1.504 ms 29.7 106.4
Server Offset 2610:20:6f97:97::6 (time-e-wwv.nist.gov) 0.809 0.809 0.879 2.178 2.865 2.975 2.975 1.986 2.166 0.642 1.995 ms 15.34 45.35
Server Offset PPS1 -70.110 -19.610 -9.520 12.860 51.320 74.360 107.300 60.840 93.970 18.026 14.916 µs 0.5496 4.664
TDOP 0.180 0.180 0.180 0.190 0.210 0.220 0.230 0.030 0.040 0.008 0.196 1.256e+04 2.93e+05
Temp LM0 57.700 57.800 58.100 59.100 60.600 60.800 61.100 2.500 3.000 0.885 59.265 °C
nSats 15.000 17.000 19.000 23.000 27.000 29.000 30.000 8.000 12.000 2.508 23.259 nSat 591.1 5094
Summary as CSV file

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
html 5    Valid CSS!
